8HP Billet Oil Pan - Ultra-Low Profile

8HP Billet Oil Pan - Ultra-Low Profile

This is our Ultra-Low Profile 8HP Billet pan which is variant from our standard 8HP Billet Oil Pan. You cant physically get any slimmer oil pan than this, without modifying the valve body of the transmission. Do you have a exposed oil pan on your lowered car, this is the solution to gain ground clearance.

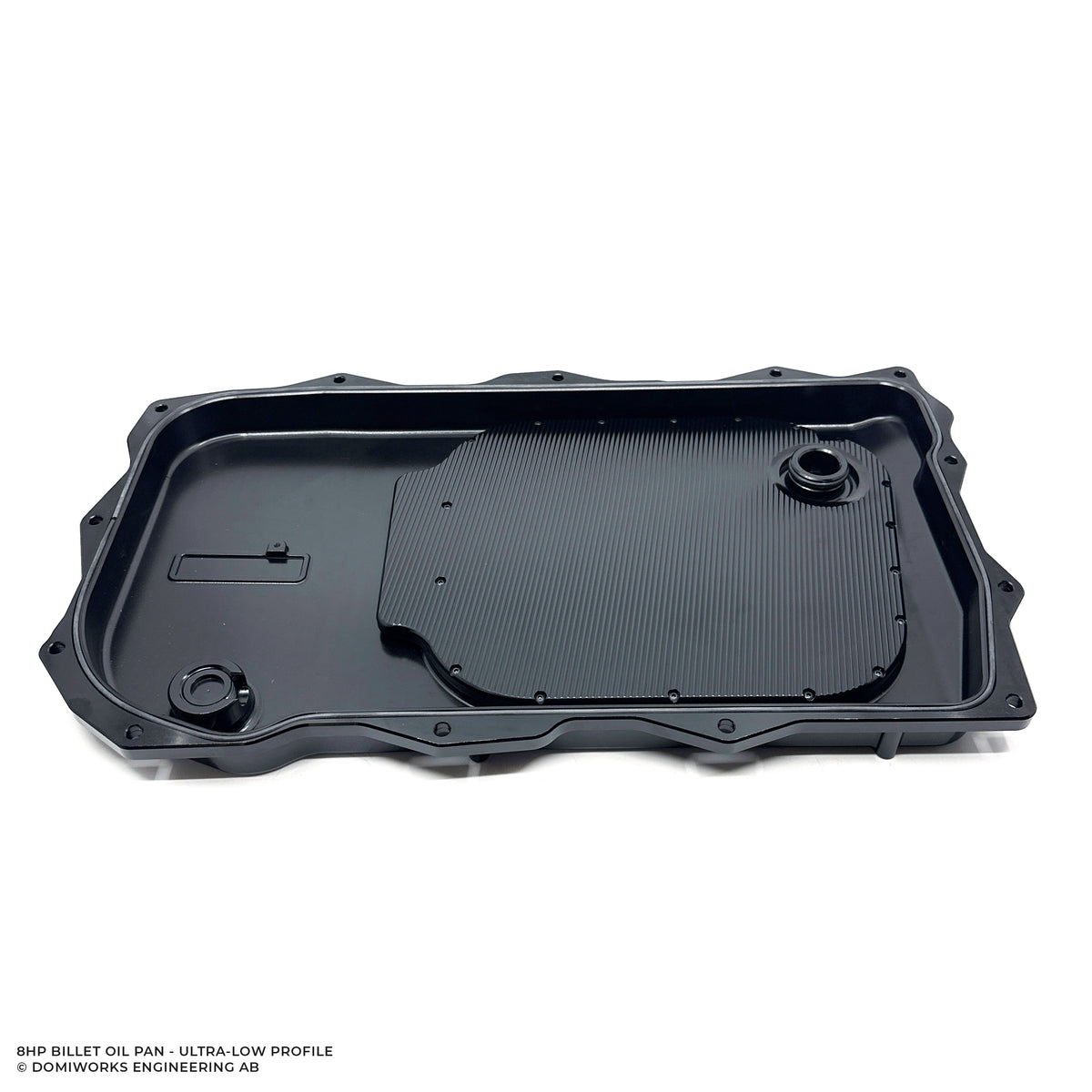

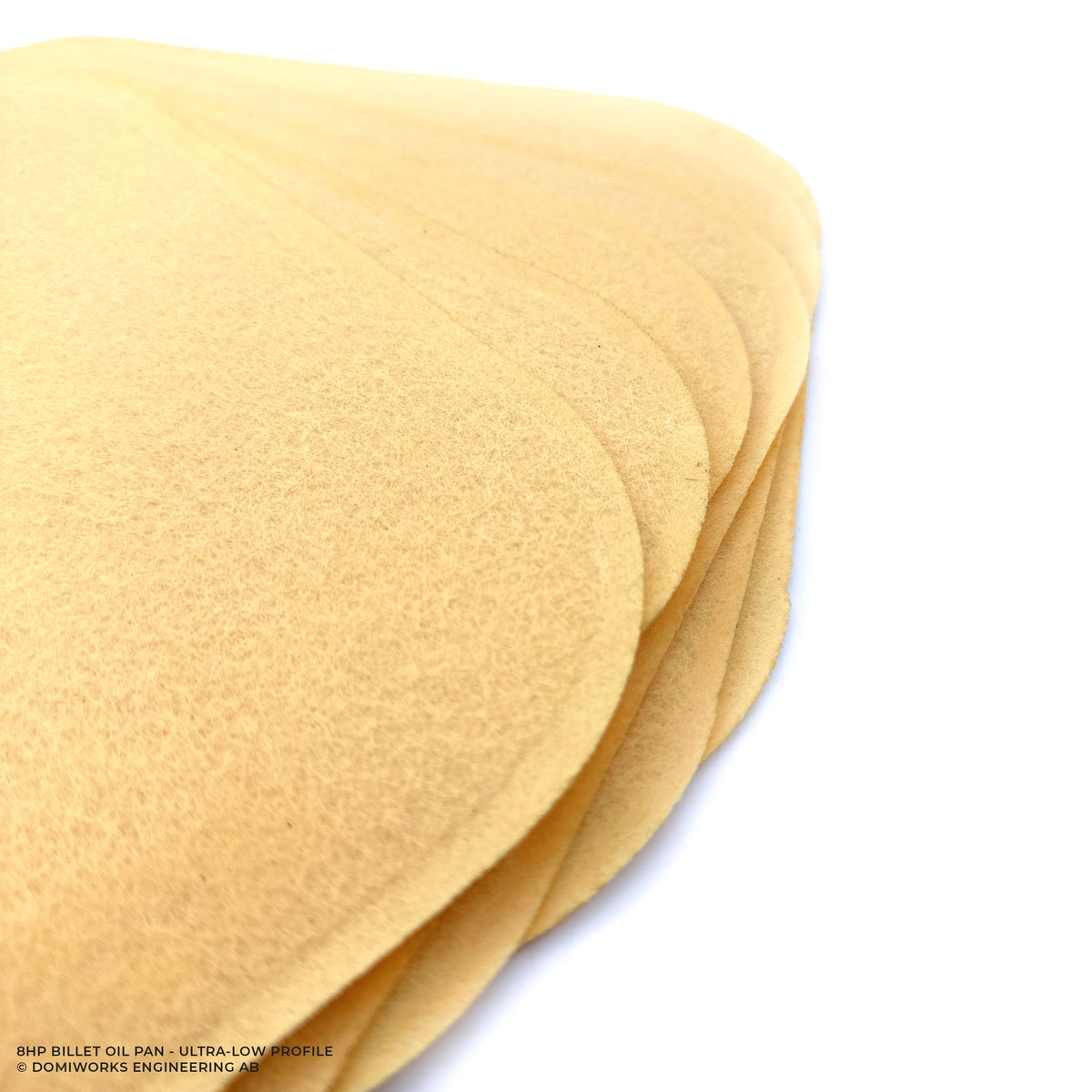

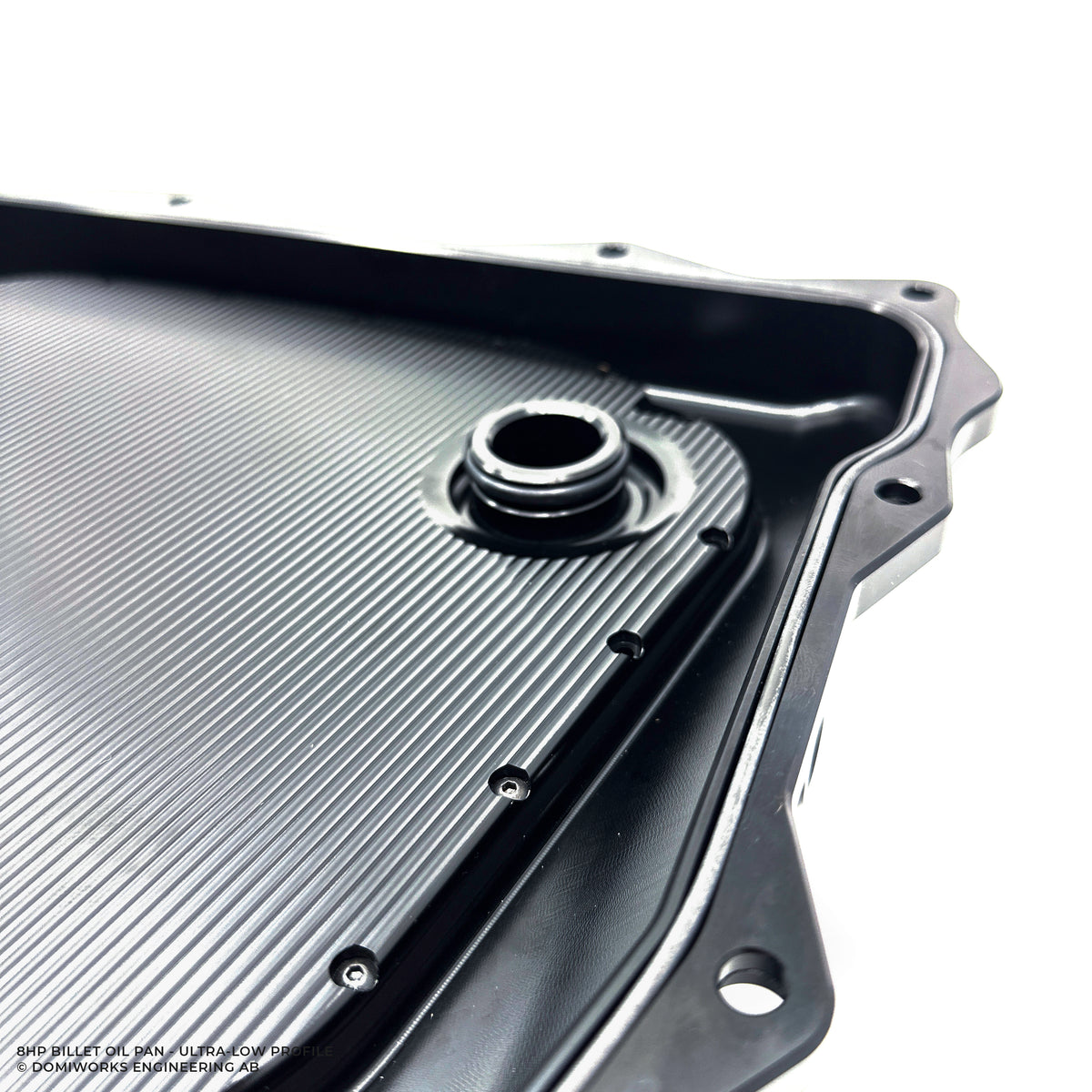

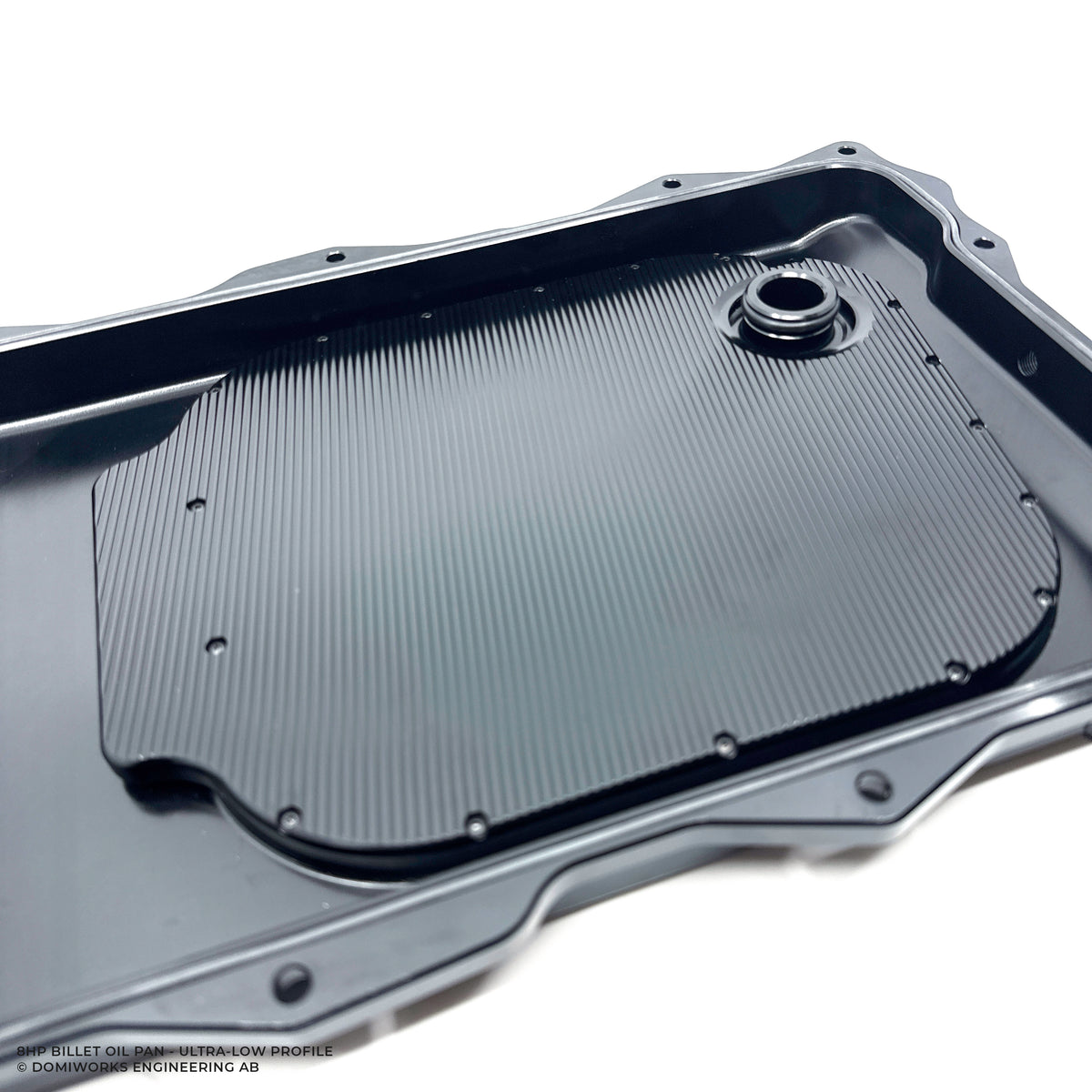

This is by far the slimmest billet oil pan on the market and this is because of our unique integrated filter element. Instead of using a common filter unit which of obvious reasons takes more space, we are using a replacable filter sheet elemtn which is mounted into the integrated filter housing inside the oil pan. The filter sheet element we use has the same or better filtration grade compared to the OEM filter elements.

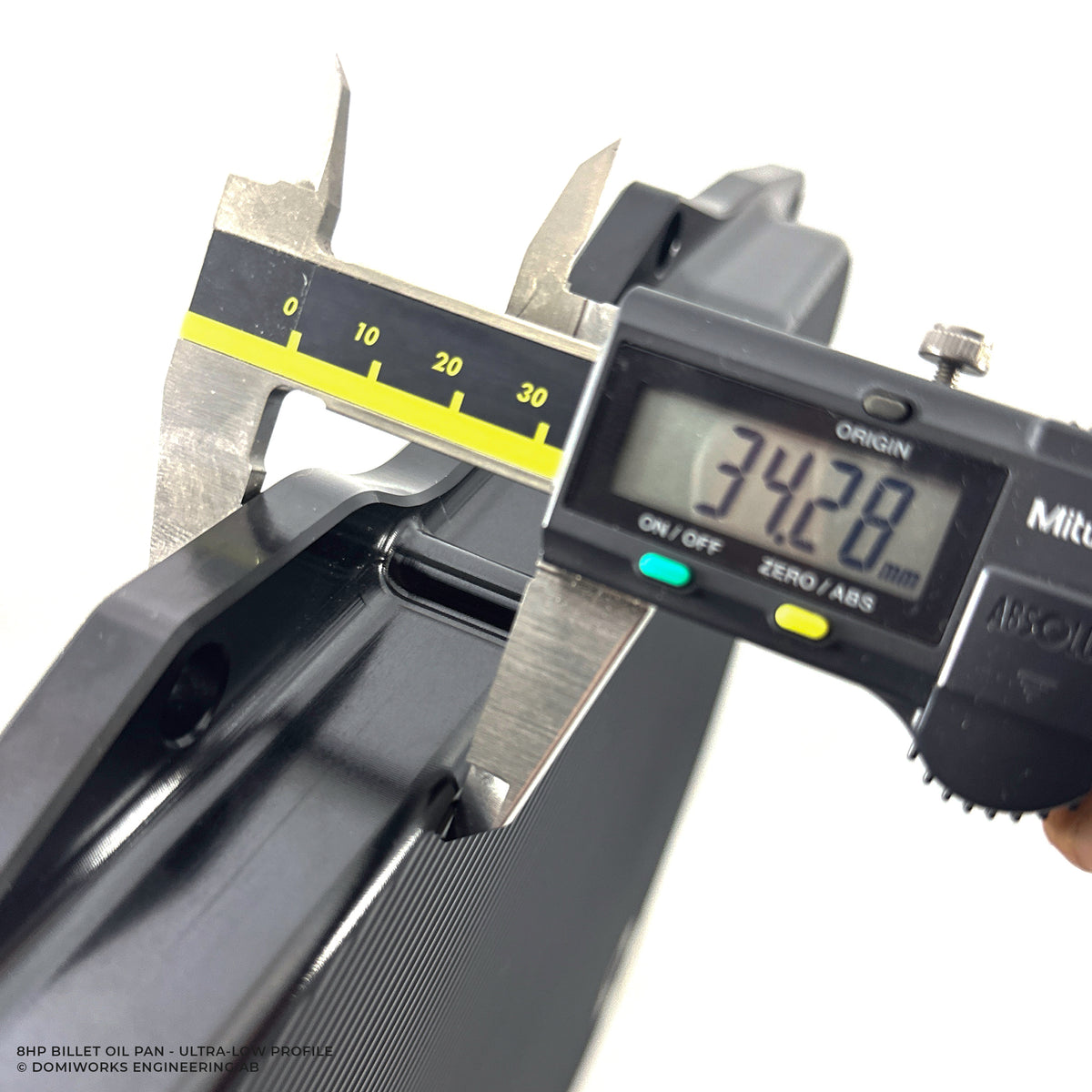

15.8mm thinner compared to the OEM plastic pan (on the deepest point of the pan).

Oil volume difference TBD.

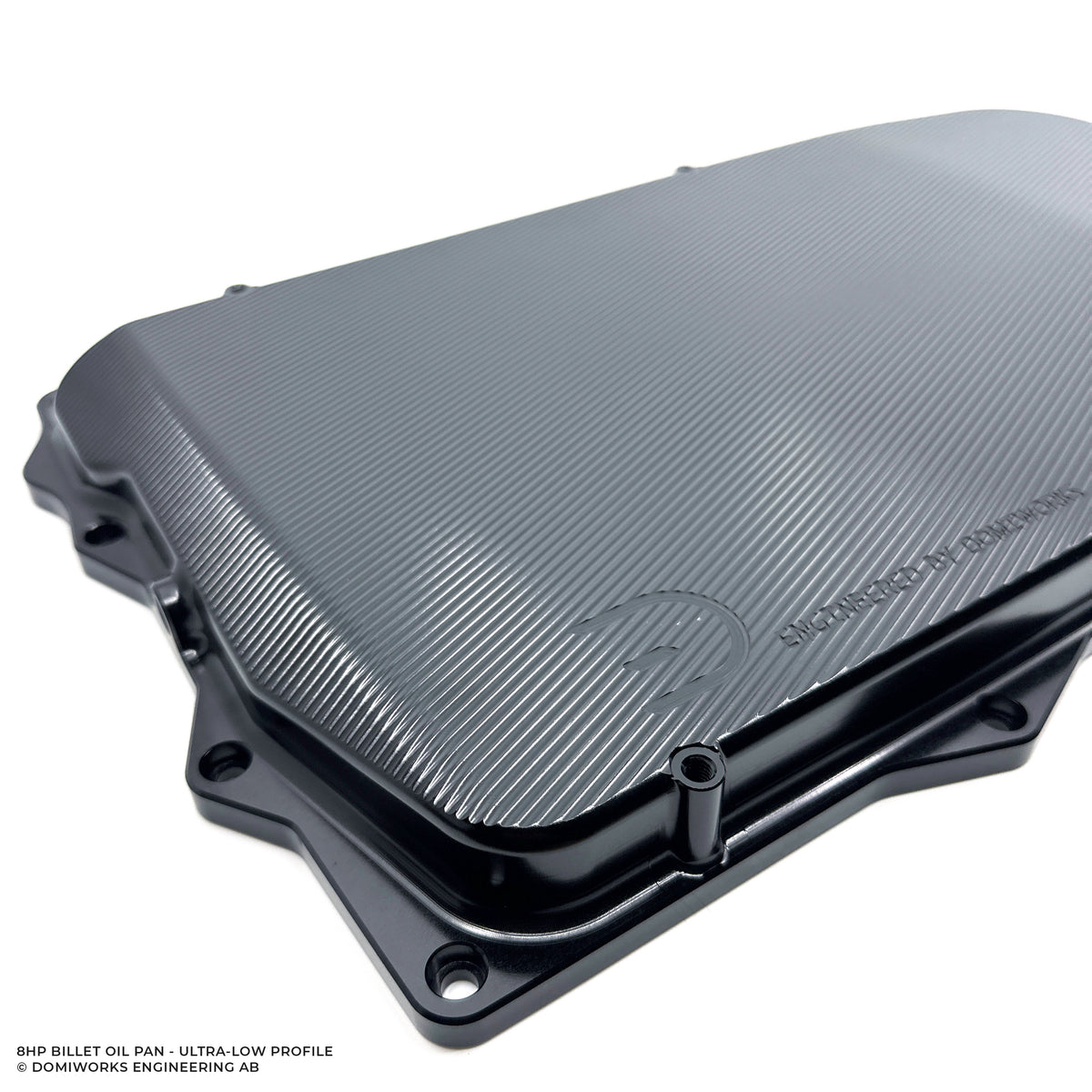

Beautifully cut exposing the serrated surface which has now come to be our design insignia. The serrated surface is not only design but also works to improve heat exchange cooling capacity.

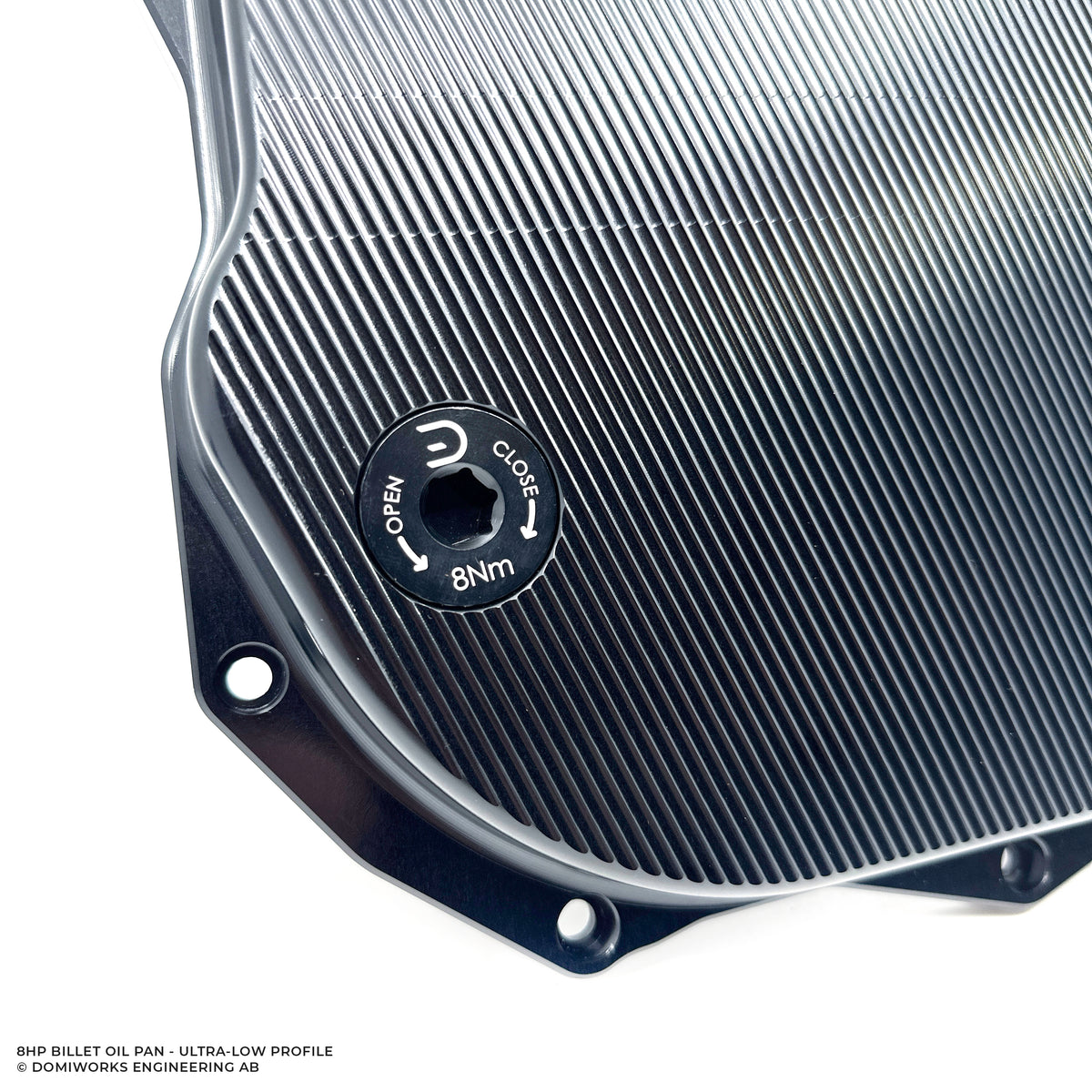

Includes oil pan, filter sheet, o-ring gasket, bolts and our very own oil pan plug.

Features four additional mounting holes if you want to mount a custom heat shield, air direction plates etc.

Includes all mounting hardware required.

Bosch temperature/pressure sensor with connector and terminals is available as an option.

Fits all 8HP Transmission with this type of plastic oil pan, not just BMW also Dodge and other brands. Normally not 90/95 transmissions, please check before buying.
